12V9Ah High Rate HR12-34W 12V34W HR12-9 Sla Agm Battery

Home

Backup Power Supply Battery

12V9Ah High Rate HR12-34W 12V34W HR12-9 Sla Agm Battery

12V9Ah High Rate HR12-34W 12V34W HR12-9 Sla Agm Battery

12V9Ah High Rate HR12-34W 12V34W HR12-9 Sla Agm Battery is used for kids ride on car, emergency lights, medical devices, ups systems, alarm systems, security systems, rechargeable fan, rolling shutter door, speaker, portable power station, etc.

  • Item No :

    12V9Ah HR Series
  • Dimension (L*W*H/TH)(mm)±2mm :

    151*65*94/100
  • Weight (kg)±3% :

    2.47
  • Terminal :

    T2/F2
  • Case color :

    Black
  • Lead Time :

    15-30 days
  • Sample :

    Available
  • OEM :

    Available
  • After-Sales Service :

    Available
  • Warranty :

    1 year
  • MOQ :

    500 PCS
  • Business Type :

    Manufacturer, Whosaler
Cells per Unit 6
Normal Voltage 12V
Capacity 34W@15min-rate to 1.8V per cell@25 °C
Weight Approx. (2.47±3%)kg
Maximum Discharge Current 90A(5sec)
Internal Resistance Approx. 20mΩ full charged @25°C
Operating Temperature Range

Discharge: -20℃~60℃

Charge: 0℃~50℃

Storage:  -20℃~60℃

Nominal Operating Temperature Range 25°C±3°C
Float Charging Voltage 13.6~13.8VDC/unit Average @25°C
Maximum Charging Current 2.7A
Equalization and Cycle Service 14.4V~15.0VDC/unit Average @ 25°C
Self Discharge KAIYING Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25°C. Self-discharge ratio less than 3% per month at 25°C. Please charge batteries before using.
Terminal F1(0.187)/F2(0.250)
Container Material

ABS(UL94-HB)

*Flammability resistance of (UL94-VO) can be available upon request

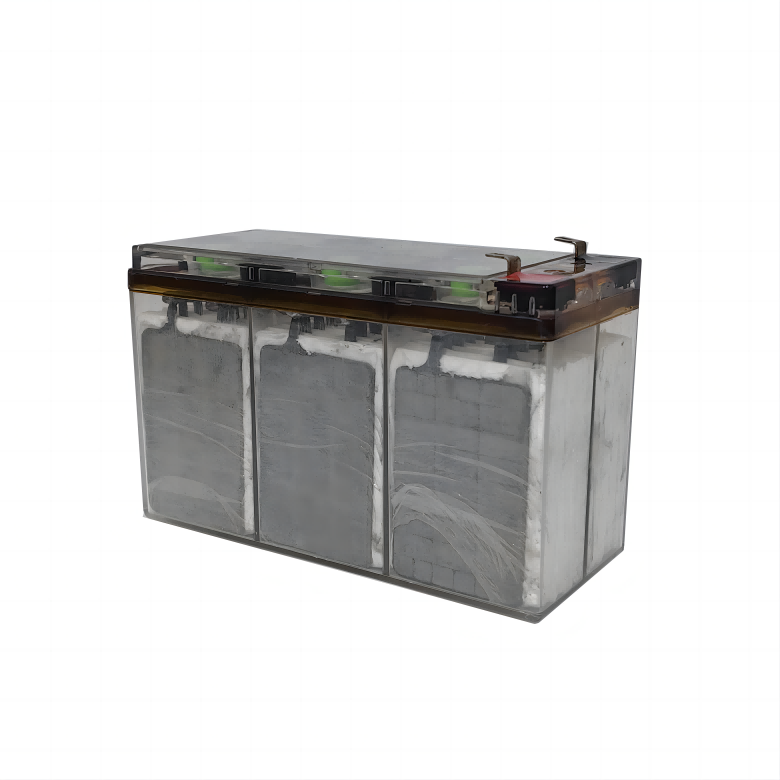

Technology: AGM(Absorbed Glass Mat). Non-spillable, free maintenance. Batteries are mostly used in the ups sector and, if used correctly, this type of battery has the advantage of not requiring special precautions. They are in fact ideal for cyclic use where many charge and discharge cycles are required.



Notes: 12V Sealed lead acid battery can last up to 10-12 years but can affect several external factors on battery life such as:

– Incorrect use of the battery;

– Inadequate maintenance carried out by a non-specialized technician;

– Exposure to extreme temperatures, both too high and too low;

– Incorrect charging of the battery using an unsuitable charger.



UPS batteries are always sold fully charged and, once discharged, it is advisable to fully recharge them to make the most of their potential and to avoid deteriorating them, thus reducing their capacity and therefore also their duration. Furthermore, it is strongly recommended to carry out a full recharge to 100% even in case of prolonged non-use of the battery and to have it checked by a specialized technician for complete efficiency.
